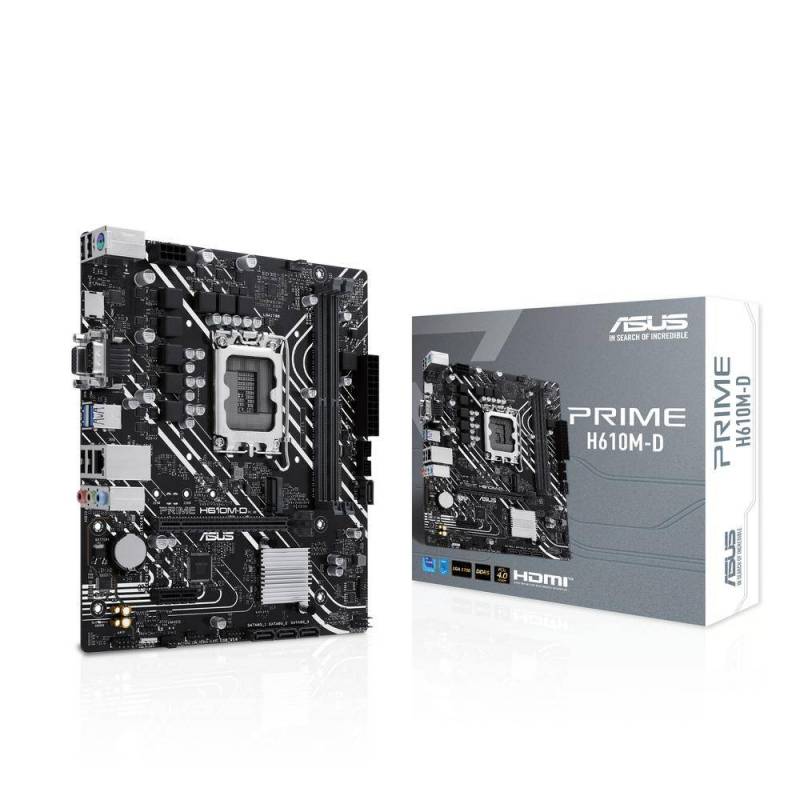

PLACA BASE ASUS INTEL PRIME H610M - D

Asus prime h610m - d. fabricante de procesador: intel - socket de procesador: lga 1700 - procesador compatible: intel® celeron® - intel® pentium® gold - intel® core i3 - intel® core i5 - intel® core.... tipos
de memoria compatibles: ddr5 - sdram - memoria interna máxima: 96 gb - tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 - sata iii - tipos de unidades de
almacenamiento admitidas: hdd & ssd. tipo de interfaz ethernet: gigabit ethernet. componente para: pc - factor de forma: micro atx - familia del chipset: intel

cpu
intel® socket lga1700 for intel® core 14th & 13th gen processors - intel® core 12th gen - pentium® gold and celeron® processors*
supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu types.
chipset
intel® h610 chipset
memoria
2 x dimm slots - max. 96gb - ddr5 5600 - 5400 - 5200 - 5000 - 4800 non - ecc - un - buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
* supported memory types - data rate (speed) - and number of dram modules vary depending on the cpu and memory configuratión - for more informatión please refer to cpu - memory support list under the
support tab of product informatión site or visit https: - - www.asus.com - support - .
* non - ecc - un - buffered ddr5 memory supports on - die ecc functión.
gráficos
1 x vga port
1 x hdmi port**
* graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates.
** supports 4k@60hz as specified in hdmi 2.1.
ranuras de expansión
intel® core processors (14th & 13th & 12th gen)
1 x pcie 4.0 x16 slot
intel® h610 chipset
1 x pcie 3.0 x1 slot
- to ensure compatibility of the device installed - please refer to https: - - www.asus.com - support - for the list of supported peripherals.
almacenamiento
total supports 1 x m.2 slot and 4 x sata 6gb - s ports
intel® h610 chipset
m.2 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 3.0 x4 mode)
4 x sata 6gb - s ports
ethernet
1 x realtek 1gb ethernet
usb
rear usb (total 6 ports)
2 x usb 3.2 gen 1 (5g) ports (2 x type - a)
4 x usb 2.0 ports (4 x type - a)
front usb (total 4 ports)
1 x usb 3.2 gen 1 (5g) header supports 2 additiónal usb 3.2 gen 1 ports
1 x usb 2.0 header supports 2 additiónal usb 2.0 ports
audio
realtek 7.1 surround sound high definitión audio codec*
- supports: jack - detectión - multi - streaming - front panel jack - retasking
- supports up to 24 - bit - 192 khz playback
audio features
- audio shielding
- premium audio capacitors
- dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.
puertos de e - s del panel posterior
2 x usb 3.2 gen 1 (5g) ports (2 x type - a)
4 x usb 2.0 ports (4 x type - a)
1 x vga port
1 x hdmi port
1 x realtek 1gb ethernet port
3 x audio jacks
1 x com port
1 x ps - 2 keyboard - mouse combo port
conectores de e - s internos
fan and cooling related
1 x 4 - pin cpu fan header
2 x 4 - pin chassis fan headers
power related
1 x 24 - pin main power connector
1 x 8 - pin +12v power connector
storage related
1 x m.2 slot (key m)
4 x sata 6gb - s ports
usb
1 x usb 3.2 gen 1 (5g) header supports 2 additiónal usb 3.2 gen 1 ports
1 x usb 2.0 header supports 2 additiónal usb 2.0 ports
miscellaneous
1 x rgb header
1 x clear cmos header
1 x front panel audio header (aafp)
1 x s - pdif out header
1 x speaker header
1 x spi tpm header (14 - 1pin)
1 x 10 - 1 pin system panel header
características especiales
asus 5x protection iii
- digi+ vrm
- languard
- overvoltage protectión
- safeslot core
- stainless - steel back i - o
asus q - design
- q - dimm
- q - led core
- q - slot
asus thermal solutión
- aluminum heatsink design
asus lighting control
- rgb header
funciónes de software
asus exclusive software
armoury crate
- fan xpert 2+
ai suite 3
- epu
- digi+ vrm
- pc cleaner
asus cpu - z
nortón 360 deluxe (60 days free trial)
winrar
uefi bios
asus ez diy
- asus crashfree bios 3
- asus ez flash 3
- asus uefi bios ez mode
bios
128 mb flash rom - uefi ami bios
manejabilidad
wol by pme - pxe
accesorios
cables
2 x sata 6gb - s cables
miscellaneous
1 x i - o shield
1 x m.2 anchor
documentatión
1 x user guide
sistema operativo
windows® 11 - windows® 10 64 - bit
factor de forma
micro - atx form factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
