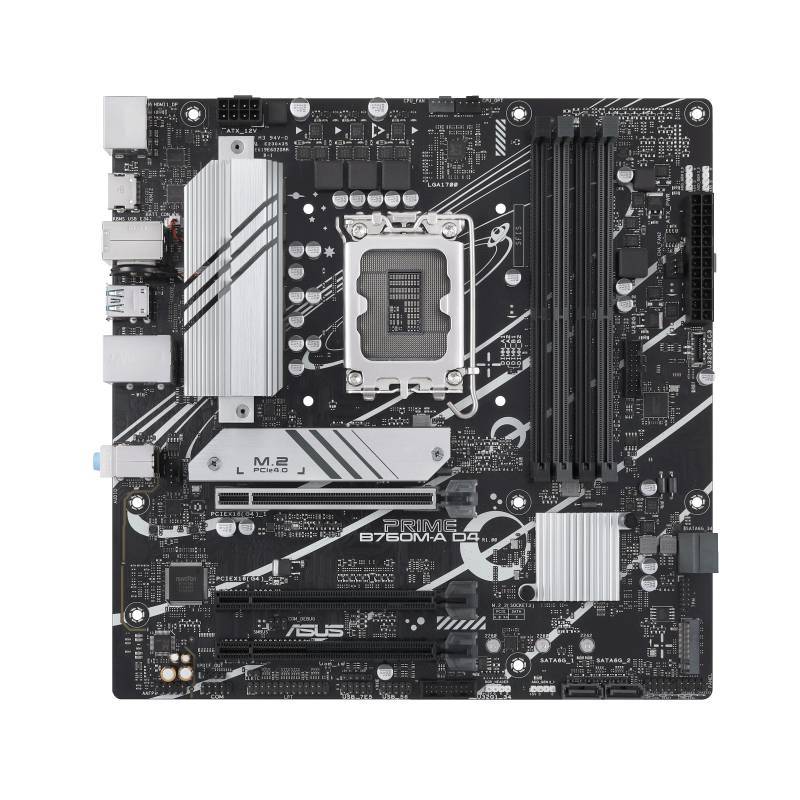

ASUS PRIME B760M A D4 CSM SOCKET DDR4 1700

Asus prime b760m - a d4 - csm. fabricante de procesador: intel - socket de procesador: lga 1700 - procesador compatible: intel® celeron® - intel® pentium® gold - intel® core i3 - intel® core i5 - intel®
core.... tipos de memoria compatibles: ddr4 - sdram - memoria interna máxima: 128 gb - tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 - sata iii - tipos de
unidades de almacenamiento admitidas: hdd & ssd - niveles raid: 0 - 1 - 5 - 10. tipo de interfaz ethernet: 2.5 gigabit ethernet. componente para: pc - factor de forma: micro atx - familia del chipset:
intel

cpu
intel® socket lga1700 for 13th gen intel® core processors & 12th gen intel® core - pentium® gold and celeron® processors*
supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0**
*refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu types.
chipset
intel® b760 chipset
memoria
4 x dimm - max. 128gb - ddr4 5333(oc) - 5066(oc) - 5000(oc) - 4800(oc) - 4600(oc) - 4400(oc) - 4266(oc) - 4000(oc) - 3733(oc) - 3600(oc) - 3466(oc) - 3400(oc) - 3333
(oc) - 3200 - 3000 - 2933 - 2800 - 2666 - 2400 - 2133 non - ecc - un - buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem ii
* supported memory types - data rate(speed) - and number of dram modules vary depending on the cpu and memory configuratión - for more informatión refer to www.asus.com for memory support list.
gráficos
1 x displayport**
2 x hdmi® ports***
* graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates.
** supports max. 4k@60hz as specified in displayport 1.4.
*** supports 4k@60hz as specified in hdmi® 2.1.
expansión slots
intel® 13th & 12th gen processors
1 x pcie 4.0 x16 slot
intel® b760 chipset
1 x pcie 4.0 x16 slot (supports x4 mode)
1 x pcie 4.0 x16 slot (supports x1 mode)
note: to ensure compatibility of the device installed - please refer to https: - - www.asus.com - support - for the list of supported peripherals.
almacenamiento
total supports 2 x m.2 slots and 4x sata 6gb - s ports*
intel® 13th & 12th gen processors
m.2_1 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4 mode)
intel® b760 chipset
m.2_2 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4 mode)
4 x sata 6gb - s ports
* intel® rapid storage technology supports sata raid 0 - 1 - 5 - 10.
ethernet
1 x realtek 2.5gb ethernet
usb
rear usb (total 6 ports)
2 x usb 3.2 gen 2 ports (2 x type - a )
4 x usb 2.0 ports (4 x type - a)
front usb (total 10 ports)
2 x usb 3.2 gen 1 headers support 4 additiónal usb 3.2 gen 1 ports
1 x usb 3.2 gen 1 connector (supports usb type - c®)
2 x usb 2.0 headers support 4 additiónal usb 2.0 ports
1 x usb 2.0 header supports 1 additiónal usb 2.0 port
audio
realtek 7.1 surround sound high definitión audio codec*
- supports: jack - detectión - multi - streaming - front panel jack - retasking
- supports up to 24 - bit - 192 khz playback
audio features
- audio shielding
- premium audio capacitors
- dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.
back panel i - o ports
2 x usb 3.2 gen 2 ports (2 x type - a )
4 x usb 2.0 ports (4 x type - a)
1 x displayport
2 x hdmi® ports
1 x realtek 2.5gb ethernet port
3 x audio jacks
1 x ps - 2 keyboard - mouse combo port
internal i - o connectors
fan and cooling related
1 x 4 - pin cpu fan header
1 x 4 - pin cpu opt fan header
2 x 4 - pin chassis fan headers
power related
1 x 24 - pin main power connector
1 x 8 - pin +12v power connector
storage related
2 x m.2 slots (key m)
4 x sata 6gb - s ports
usb
2 x usb 3.2 gen 1 headers support 4 additiónal usb 3.2 gen 1 ports
1 x usb 3.2 gen 1 connector (supports usb type - c®)
2 x usb 2.0 headers support 4 additiónal usb 2.0 ports
1 x usb 2.0 header supports 1 additiónal usb 2.0 port
miscellaneous
3 x addressable gen 2 headers
1 x aura rgb header
1 x clear cmos header
1 x com port header
1 x front panel audio header (aafp)
1 x lpt header
1 x s - pdif out header
1 x spi tpm header (14 - 1pin)
1 x 20 - 3 pin system panel header with chassis intrude functión
características especiales
asus 5x protection iii
- digi+ vrm
- languard
- overvoltage protectión
- safeslot core+
- stainless - steel back i - o
asus q - design
- q - dimm
- q - led core
- q - slot
asus thermal solutión
- m.2 heatsink
- vrm heatsink design
asus ez diy
- procool
aura sync
- aura rgb header
- addressable gen 2 headers
software features
asus exclusive software
armoury crate
- aura creator
- aura sync
- fan xpert 2+
- power saving
ai suite 3
- digi+ vrm
- pc cleaner
asus cpu - z
nortón deluxe (60 days free trial)
winrar
uefi bios
asus ez diy
- asus crashfree bios 3
- asus ez flash 3
- asus uefi bios ez mode
bios
128 mb flash rom - uefi ami bios
manejabilidad
wol by pme - pxe
accesorios
cables
2 x sata 6gb - s cables
miscellaneous
1 x i - o shield
1 x m.2 rubber package
1 x screw package for m.2 ssd
documentatión
1 x acc express activatión key card
1 x user guide
sistema operativo
windows® 11 - windows® 10 64 - bit
factor de forma
matx form factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
