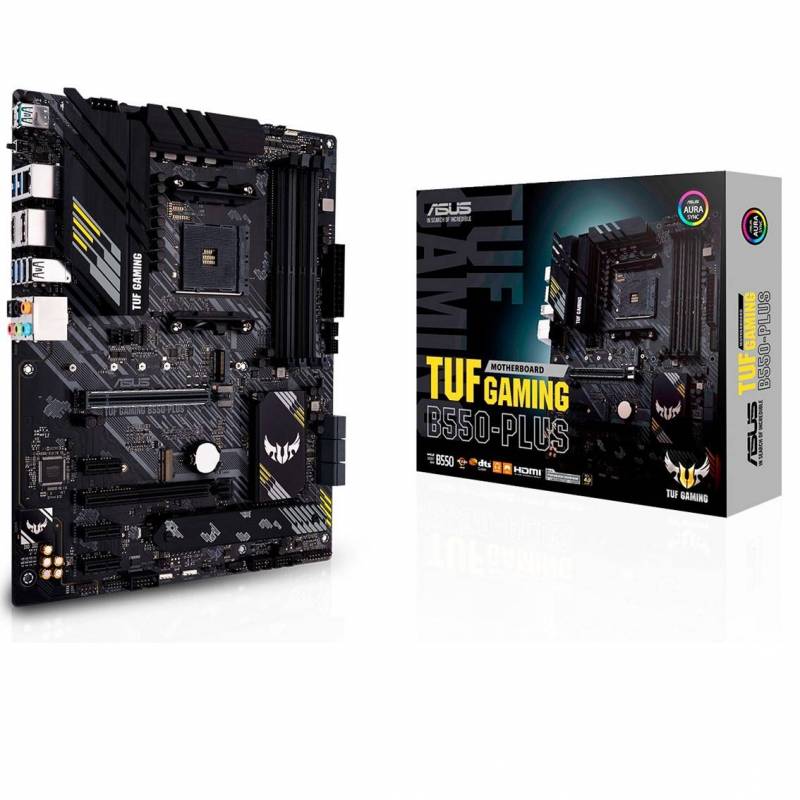

PLACA BASE ASUS AMD TUF GAMING B550-PLUS

Especificaciones:

• CPU
  • Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
  • * Refer to www.asus.com for CPU support list
• Chipset
  • AMD B550
• Memoria
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU.
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Gráficos
  • 1 x DisplayPort 1.4 **
  • 1 x HDMI 2.1(4K@60HZ)
  • *Graphics specifications may vary between CPU types.
  • **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Soporte Multi GPU
  • Supports AMD 2-Way CrossFireX Technology
• Slots de Expansión
  • 3rd Gen AMD Ryzen™ Processors
  • 1 x PCIe 4.0 x16 (x16 mode)
  • AMD B550 Chipset
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 3 x PCIe 3.0 x1 *1
  • * Support PCIe bifurcation for RAID on CPU function.
• Almacenamiento
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • 3rd Gen AMD Ryzen™ Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • AMD B550 Chipset :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
  • 6 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• LAN
  • Realtek RTL8125B 2.5Gb Ethernet
  • TUF LANGuard
  • Datos de redes inlámbricas
  • M.2 slot only (Key E) (Support PCIe interface)*
  • *Wi-Fi module is sold separately.
• Audio
  • Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature :
  • - Exclusive DTS Custom for GAMING Headsets.
  • - Optical S/PDIF out port(s) at back panel
  • - Audio cover
  • - Audio Shielding
  • - Dedicated audio PCB layers
  • - Premium Japanese audio capacitors
  • - Unique de-pop circuit
• Puertos USB
  • Rear USB Port ( Total 8 )
  • 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 port(s)( x Type-A)
  • 2 x USB 2.0 port(s)( x Type-A)
  • Front USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 4 x USB 2.0 port(s)(4 x Type-A)
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - AI Noise Cancelling Microphone
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert 2+
  • - EZ update
  • TUF GAMING CPU-Z
  • AI Charger
  • ASUS Turbo LAN
  • DAEMON Tools
  • DTS Custom for GAMING Headsets
  • Norton Anti-virus software (Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  • ASUS TUF PROTECTION
  • - ASUS DIGI+ VRM (Digital power design with Dr. MOS)
  • - ASUS Enhanced DRAM Overcurrent Protection
  • - ASUS ESD Guards
  • - TUF LANGuard
  • - ASUS Overvoltage Protection
  • - ASUS SafeSlot
  • - ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
  • - ASUS Q-DIMM
  • - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - ASUS Q-Slot
  • ASUS Thermal Solution
  • - Aluminum M.2 heatsink
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - Procool
  • AURA Sync
  • - Standard RGB headers
  • - Addressable Gen 2 RGB header
• Puertos I/O Traseros
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (2.5G) port(s)
  • 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x BIOS FlashBack™ Button(s)
• Internal I/O
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 with E key for Wi-Fi module
  • 1 x SPI TPM header
  • 6 x SATA 6Gb/s connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Thermal sensor connector(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
• Accessorios
  • User's manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x TUF Gaming Sticker
  • 1 x TUF Certification card(s)
  • 1 x M.2 SSD screw package(s)
  • 1 x M.2 Rubber Package(s)
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Capacidad de gestión
  • WOL by PXE
• Sistema Operativo
  • Windows® 10 64-bit
• Factor de forma
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
